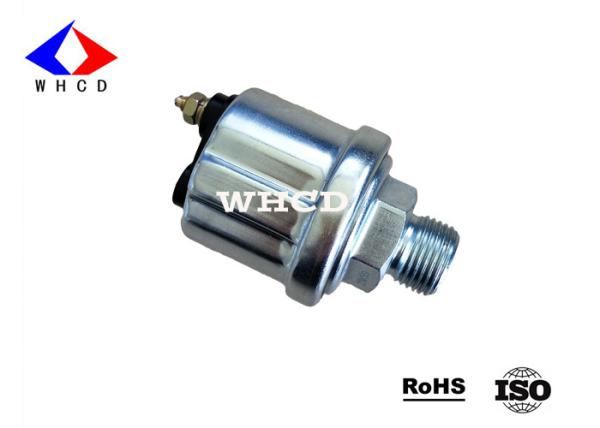

M12x1.5 Thread Oil Pressure Sensor With Warning Contact 0.8 Bar

Product Description

The oil pressure sensor is installed on the main oil channel of the engine. When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit. The pressure signal is connected to the oil pressure meter. When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Application

Automotive Engine

Automotive Brake System

Air Compressor

Agricultural Machinery Engine

Generator Engine

Diesel Engine

Hydraulic Control System

Technical Data

Conducting power: < 5W
Operating temperature: -40 ~ 125℃
Measuring range: 0 ~ 10 Bar
Alarm: 0.8 Bar
Output signal: Standard resistance value: 10 ~ 184Ω
Thread fitting: NPT1/4, NPT1/8,M10X1,M12x1.5 or customized as requires.
Protection rank: IP66

Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeat-ability / Hysteresis

Special design for customer

Many OEM options

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.
