White Zinc Plated Automotive Oil Pressure Sensor For Truck
Instrument
Product Description
We supply the engine oil pressure sensor with the feature of
compact configuration, high reliability, easy to install, vibration
proof and all-metal sealed pressure system which withstands more
than 10 million pressure cycles without failure. This series is
used to measure the pressure of engine oil, brake system, fuel,
diesel engine high-pressure common rail test system in the
automotive industry. The engine oil pressure sensor can also be
used to measure the pressure for liquid, gas and steam.
Application
Oil pressure sensor is widely applied to many fields, such as the
engine pipe of vehicle and ship, water processing project,
inspection and control of industrial process, hydraulic and
pneumatic control project, etc.
Technical Data
Operating voltage:6~24V
Conducting power: < 5W
Operating temperature: -25 ~120℃ (120℃ MAX 1H)
Measuring range: 0~5 Bar or 0~10 Bar
Alarm: 0.8 Bar or 1.4 Bar
Output signal: Standard resistance value: 10~184Ω
Thread fitting: NPT1/4, NPT1/8, M10, M10X1 or customized as
requires.
Protection rank: IP66
Feature
Oil pressure sensor combines the advantages of excellent
anti-vibration performance, long service life, simple assembly,
stable quality, wide range of operating temperature, etc.
Function
It is installed in the down side of the throttle door spindle, it
will change the open size of throttle door into electrical signal
then pass it to the controlled computer ECU, and the computer ECU
judge the engine work situation according to this signal, to
control the oil injection according to different work situation for
the requirement of mixture concentration.
Cautions
1. this product needs a wrench to be clamped to the six side nut
and tighten the thread. The maximum tightening torque is 17N.m.

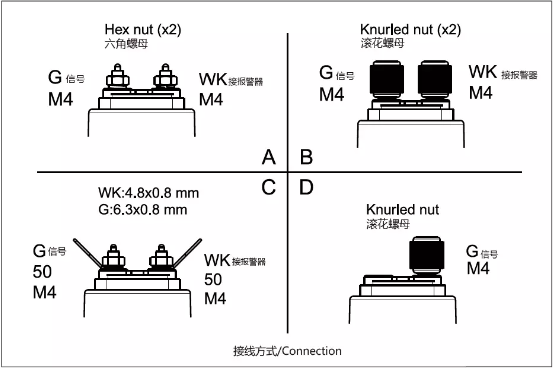

2.the output end of this product is connected with the wire harness
to ensure the reliable transmission of the signal.
Basic Function Test
Life Test
Vibration Test
Vibration Test Parameters
Temperature Cycling Parameters
Delivery
Normally it’s 3-5 working days after payment cleared.
Payment
30% down-payment for production, balance payment before shipment.
Packing
A: Product packed in foam box with bubble bag.
B: According to client’s requirement.
Shipment
DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.
Q & A
| Question | Answer |
| What’s your main products? | oil pressure sensor, liquid level sensor, water temperature sensor,
speed sensor |
Where are you?
| Wuhan city, Hubei Province, China |
| Do you accept OEM? | Yes, OEM is welcomed |
| Are you manufacturer or trading company? | We are manufacturer with export license. |
| Do you provide sample? | Yes |
| Do you have any certificate? | Yes,we have ISO/TS16949, RoHS |
| What’s the MOQ? | There’s no limit for MOQ |
