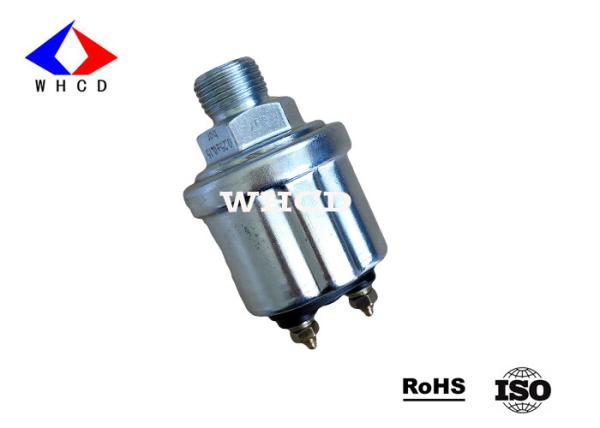

White Zinc Plated Automotive Oil Pressure Sensor For Truck Meters

Product Description

We supply the engine oil pressure sensor with the feature of compact configuration, high reliability, easy to install, vibration proof and all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure. This series is used to measure the pressure of engine oil, brake system, fuel, diesel engine high-pressure common rail test system in the automotive industry. The engine oil pressure sensor can also be used to measure the pressure for liquid, gas and steam.

Application

It is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project, etc.

Technical Data

Operating voltage:6~24V
Conducting power: < 5W
Operating temperature: -25 ~120℃(120℃ MAX 1H)
Measuring range: 0~5Bar or 0~10Bar
Alarm: 0.8Bar or 1.4Bar
Output signal: Standard resistance value: 10~184Ω
Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires.
Protection rank: IP66

Feature

Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeat-ability / Hysteresis
Special design for customer
Many OEM options

Instruction

Oil pressure sensor is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2. the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Our Service

1. Our quotation is always valid for you if there is no world market unrest.
2. Receiving your new inquiry, the details of products & the best price will be provided you asap.
3. 7 days replacement and 12 months repair free of charge for quality problem.
4. Port: Shanghai.
5. Payment: T/T.
6. OEM available
7. Delivery time is 7-10 working days.
8. All goods will be fully checked by our QC.
9. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
