10 ~ 184 Ω Electrical Air Pressure Sending Unit For Automotive Brake System

    Buy cheap 10 ~ 184 Ω Electrical Air Pressure Sending Unit For Automotive Brake System from wholesalers

    Buy cheap 10 ~ 184 Ω Electrical Air Pressure Sending Unit For Automotive Brake System from wholesalers
    • Buy cheap 10 ~ 184 Ω Electrical Air Pressure Sending Unit For Automotive Brake System from wholesalers

    10 ~ 184 Ω Electrical Air Pressure Sending Unit For Automotive Brake System

    Ask Lasest Price
    Brand Name : WHCD
    Model Number : CDYG302010400
    Certification : RoHS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 20,000 pcs/month
    Delivery Time : 3-5 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    10 ~ 184 Ω Electrical Air Pressure Sending Unit For Automotive Brake System

    Color Zinc Plated Automotive Oil Pressure Sensor For Brake System


    Product Description


    Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.


    Technical Data


    • Operating voltage:6~24V
    • Conducting power: < 5W
    • Operating temperature: -25 ~120℃(120℃ MAX 1H)
    • Measuring range: 0~5Bar or 0~10Bar
    • Alarm: 0.8Bar or 1.4Bar
    • Output signal: Standard resistance value: 10~184Ω

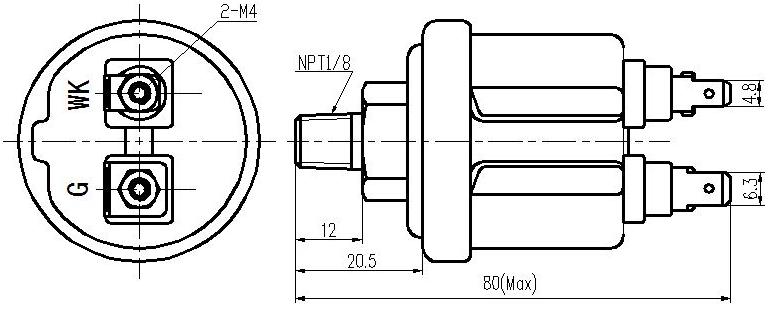

    • Thread fitting: NPT1/4, NPT1/8, M10, M10x1 or customized as requires.
    • Protection rank: IP66

    Application


    Automotive Engine

    Automotive Brake System

    Air Compressor

    Agricultural Machinery Engine

    Generator Engine

    Diesel Engine

    Hydraulic Control System


    Feature


    Superior long term stability

    Temperature compensated over wide range

    Low power consumption

    Excellent repeat-ability / Hysteresis

    Special design for customer

    Many OEM options


    Instruction


    This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.


    Cautions


    1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.
    2. the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

    0~10 Bar Mechanical Generator Oil Pressure Sensor with Warning Contact

    Basic Function Test


    0~10 Bar Mechanical Generator Oil Pressure Sensor with Warning Contact

    Life Test

    0~10 Bar Mechanical Generator Oil Pressure Sensor with Warning Contact

    Sinusoidal Vibration Test

    0~10 Bar Mechanical Generator Oil Pressure Sensor with Warning Contact

    Vibration Test Parameters

    0~10 Bar Mechanical Generator Oil Pressure Sensor with Warning Contact

    Temperature Cycling Parameters


    Our Service


    1. Our quotation is always valid for you if there is no world market unrest.
    2. Receiving your new inquiry, the details of products & the best price will be provided you asap.
    3. 7 days replacement and 12 months repair free of charge for quality problem.
    4. Port: Shanghai.
    5. Payment: T/T.
    6. OEM available
    7. Delivery time is 7-10 working days.
    8. All goods will be fully checked by our QC.
    9. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
    10. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.

    Q & A


    QuestionAnswer
    What’s your main products?oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor

    Where are you?


    Wuhan city, Hubei Province, China
    Do you accept OEM?Yes, OEM is welcomed
    Are you manufacturer or trading company?We are manufacturer with export license.
    Do you provide sample?Yes
    Do you have any certificate?Yes,we have ISO/TS16949, RoHS
    What’s the MOQ?There’s no limit for MOQ

    Company Introduction


    Since its establishment, Wuhan Chidian Technology Co., Ltd. has always regarded product quality as the core competition of the company in market. It is precisely because of product positioning and the strong product quality awareness of all employees that the company continues to develop and is getting better and better.


    In the auto parts industry, there are two key factors of product quality control, one is raw materials of the components, and the other is the process control of the production.


    First, in the purchasing of raw materials, high quality is the only choice for our production.

    1. Thick Film Resistors: All high-precision, high wear-resistant ceramic resistance.

    2. Spring: Imported spring steel.

    3. The alarm board developed by our chief engineer that is exclusively owned by our company.

    4. Media separator: all fold resistant, high temperature resistance, anti-aging, made of corrosion and other excellent properties of rubber and high-strength fabric and other polymer materials.


    Second, the product debugging and testing equipment is independently researched and developed by the company. It has uniqueness and leading technology to automate the testing process and intelligently judge the testing results.


    Third, in the quality control process, every product will be tested three times before delivery.


    Stage I: preliminary adjustment of the product. Which includes two aspects:

    1. To debug the resistance value of the detection points

    2. To test reliability of detection point for the entire process from zero to the full scale pressure. Prevents the occurrence of momentary short-circuit between two detection points due to dust, fibers, other impurities on the circuit board or poor manufacturing of the circuit board, mainly due to the sudden abnormal occurrence of the meter pointer.


    Stage II Semi-final product testing include 4 aspects:

    1. To test the resistance value of the detection points

    2. To test reliability of detection point for the entire process from zero to full scale pressure

    3. To debug and test the pressure value of the alarm

    4. To test reliability of detection for the entire process from zero to alarm value.


    Stage III Final product testing include four aspects:

    1. To test the resistance value of the detection points

    2. To test reliability of detection point for the entire process from zero to full scale pressure

    3. To test pressure value of alarm

    4. To test reliability of detection for the entire process from zero to alarm value.


    Regardless of the size of the company, whether the funds are strong or not, the quality control of the product is life of the company and our responsibility. We are confident that we will not produce an unqualified product and will not allow an unqualified product to out of factory.

    Yours satisfaction is the motivation of all of us!
