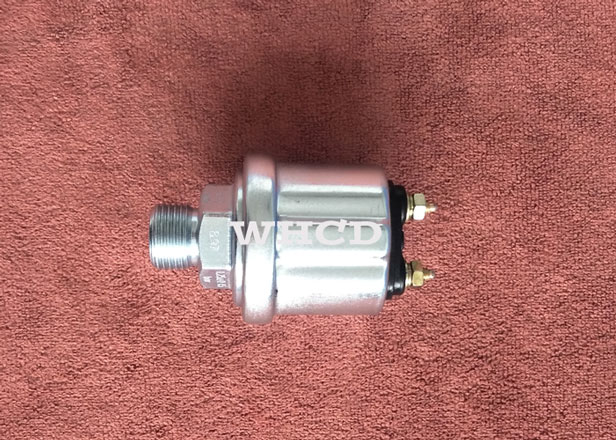

M16x1.5 Auto Parts Air Pressure Alarm Sensor For Volvo Trucks

Technical Data

• Operating voltage: 6~24V
• Conducting power: < 5W
• Operating temperature: -25 ~120℃ (120℃ MAX 1H)
• Measuring range: 0~10Bar
• Alarm: 0.5 Bar
• Output signal: 10~184Ω
• Thread fitting: NPT1/4, NPT1/8, M10, M10X1, M14x1.5 or customized as requires.
• Protection rank: IP66

Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeat-ability / Hysteresis

Special design for customer

Many OEM options

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Basic Function Test

Life Test

Sinusoidal Vibration Test

Vibration Test Parameters

Temperature Cycling Parameters

Advantage

1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service

Our Service

1. Our quotation is always valid for you if there is no world market unrest.
2. Receiving your new inquiry, the details of products & the best price will be provided you asap.
3. 7 days replacement and 12 months repair free of charge for quality problem.
4. Port: Shanghai.
5. Payment: T/T.
6. OEM available
7. Delivery time is 7-10 working days.
8. All goods will be fully checked by our QC.
9. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
