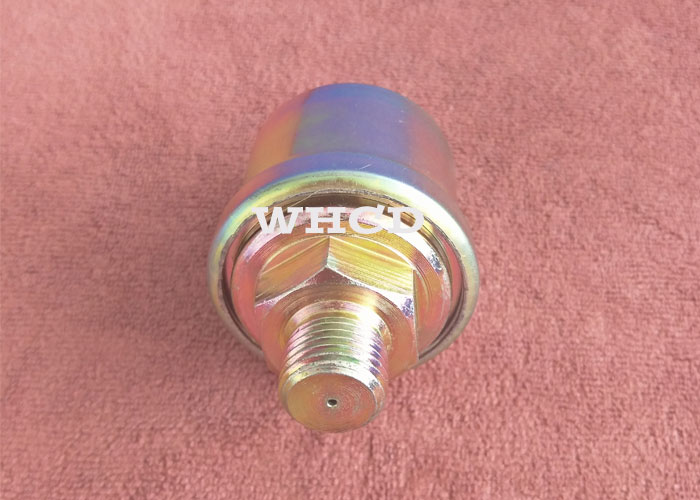

Auto Air Pressure Sensor For Truck / Bus / Trailer / Heavy-duty Vehicle

Application

Automotive Engine

Automotive Brake System

Air Compressor

Agricultural Machinery Engine

Generator Engine

Diesel Engine

Hydraulic Control System

Production Description

Air pressure sensor is high quality, high stability, small size. low weight. Compact structure, low cost and mass production. The products are widely used to measure of air compressors, auto engines, air conditioning equipment etc. The product is made of carbon steel , SS304 / 316 or brass, which is ideal for industrial environment.

Technical Data

• Operating voltage:6~24V
• Conducting power: < 5W
• Operating temperature: -25 ~120℃(120℃ MAX 1H)
• Measuring range: 0~5Bar or 0~10Bar
• Alarm: 0.8Bar or 1.4Bar
• Output signal: Standard resistance value: 10~184Ω
• Thread fitting: NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized as requires.
• Protection rank: IP66

Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeat-ability / Hysteresis

Special design for customer

Many OEM options

Function

Monitoring engine oil pressure status

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.

B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.
