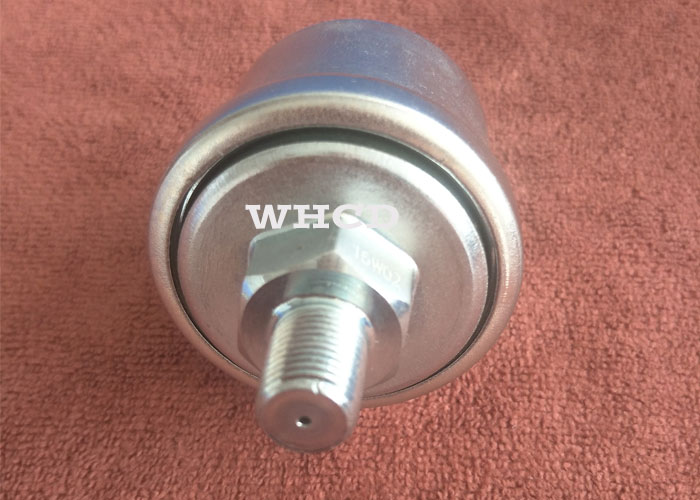

White Zinc Plated Mechanical Oil Pressure Sensor For Truck Engine

Product Description

We supply the engine oil pressure sensor with the feature of compact configuration, high reliability, easy to install, vibration proof and all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure. This series is used to measure the pressure of engine oil, brake system, fuel, diesel engine high-pressure common rail test system in the automotive industry. The engine oil pressure sensor can also be used to measure the pressure for liquid, gas and steam.

Application

Automotive Engine

Automotive Brake System

Air Compressor

Agricultural Machinery Engine

Generator Engine

Diesel Engine

Hydraulic Control System

Technical Data

Operating voltage: 6~24V

Conducting power: < 5W

Operating temperature: -25 ~120℃ (120℃ MAX 1H)

Measuring range: 0~5 Bar or 0~10 Bar

Alarm: 0.8 Bar or 1.4 Bar

Output signal: Standard resistance value: 10~184Ω

Thread fitting: NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized as requires.

Protection rank: IP66

Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeat-ability / Hysteresis

Special design for customer

Many OEM options

Function

Monitoring engine oil pressure status

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is on. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.
