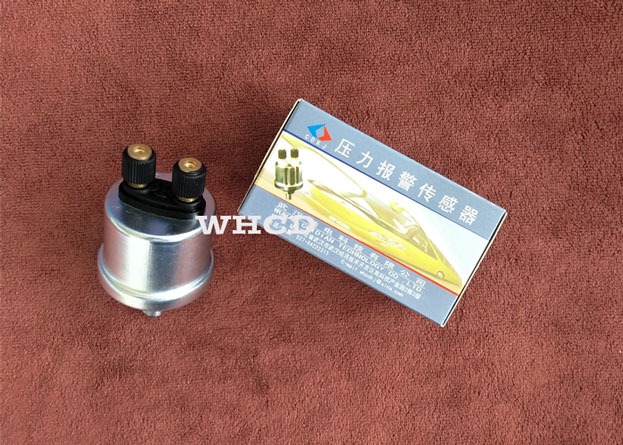

0 ~ 10 Bar Mechanical Oil Pressure Sensor For Hydraulic Control System

Product Description

The oil pressure sensor is installed on the main oil channel of the engine. When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit. The pressure signal is connected to the oil pressure meter. When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Application

Automotive Engine

Automotive Brake System

Air Compressor

Agricultural Machinery Engine

Generator Engine

Diesel Engine

Hydraulic Control System

Technical Data

Operating voltage: 6~24V

Conducting power: < 5W

Operating temperature: -25 ~120℃ (120℃ MAX 1H)

Measuring range: 0~5 Bar or 0~10 Bar

Alarm: 0.8 Bar or 1.4 Bar

Output signal: Standard resistance value: 10~184Ω

Thread fitting: NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized as requires.

Protection rank: IP66

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is on. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Function

Monitoring engine oil pressure status

Our Service

1. Our quotation is always valid for you if there is no world market unrest.
2. Receiving your new inquiry, the details of products & the best price will be provided you asap.
3. 7 days replacement and 12 months repair free of charge for quality problem.
4. Port: Shanghai.
5. Payment: T/T.
6. OEM available
7. Delivery time is 7-10 working days.
8. All goods will be fully checked by our QC.
9. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
