0.1+-0.02MPa Cargo Truck Volvo Sensor Automotive Engine Parts Sensor Oil Pressure Sensor

Product Features

• ✿ This oil pressure sensor is for VDO with thread type of 1/8-27NPTF, perfectly fitted for VDO models.
• ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.
• ✿ The oil pressure sensor can accurately measure the pressure to be measured and transmit the test results to subsequent displays or controls as appropriate.
• ✿ The oil pressure sensor is an important part of engine, used for pressure measurement and control.
• ✿ You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.

APPLICATION:

• ✿ It combines the advantages of excellent anti-vibrat ion performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
• ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.It is largely applied t o many fields, such as t he engine pipe of vehicles and ships, water processing projects,inspection and control of indust rial processes, hydraulic and pneumatic control project s, etc.
• ✿ Protection rank: IP66

• ✿ Operating voltage: 6~24V
• ✿ Conducting power: <5W
• ✿Operating temperature: -25 ~120℃(120℃ MAX 1H)
• ✿ Measuring range: 0~5Bar or 0~10Bar
• ✿ Alarm: 0.8Bar or 1.4Bar customized
• ✿ Output signal: Standard resistance value: 10~184Ω
• ✿ Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires.

APPLICATION:

Within one year after shipment, except for improper installation and operations by user.

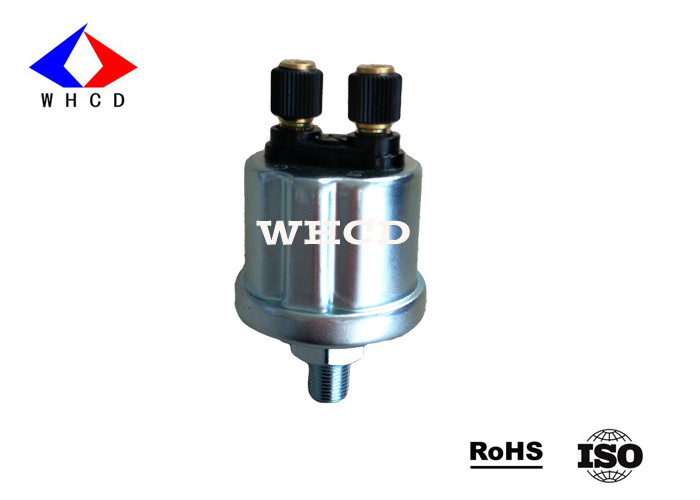

PRODUCT PICTURE :

Wuhan Chidian Technology Co.,Ltd is a professional manufacturer of auto sensors in Wuhan Economical & Technological Development Zone of China. Since 2009 with more then 25 years of professional technical experience. also we have been certified by RoHS and REACH; ISO/TS16949... ,

Our factory have obtained 6 product invention patents and 15 utility model patents to ensure the precision and high quality production of our products in all industries

Wuhan Chidian focused on development and production of pressure sensor, temperature sensor, fuel level sensor, speed sensor etc.

Wuhan Chidian have first-class technical team, with strong R & D capability and rich experience in production management. In the production line, we have the most advanced and completed sets of equipment to ensure product quality and reliability.

Wuhan Chidian brings together the top professional talents and technology. The software and hardware of our advanced testing equipment designed by our professional and technical personnel. We have obtained several utility medel patents from National Patent Office.

We provide customers with affordable, high-quality products. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key components from Germany and the United States, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 10-year performance of the sensor.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 50 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Looking forward to the future, the company is moving into the fast lane of development and will continue to adhere to the concept of creating quality products to serve global customers. Our mission is to be the most valuable and competitive automotive sensors in the world.
